21pc Diesel Injector Puller Removal and Dismantling Set for Common Rail Diesels
21pc Seized Injector Puller, Removal and Dismantling Set for and extensive list of diesel injectors.
SA-5295
This comprehensive set is manufactured for us with high quality materials and outstanding workmanship for professional use and suitable for removing extremely seized diesel injectors including Bosch, Delphi, and Siemens. Suitable for Common Rail Diesel applications.
This set is invaluable when injectors are stuck in the cylinder head recess.
Can be used with an oversized slide hammer (slide hammer not included).
This set contains tools to dismantle injectors allowing the
puller spindle to be screwed into the internal thread of injector.

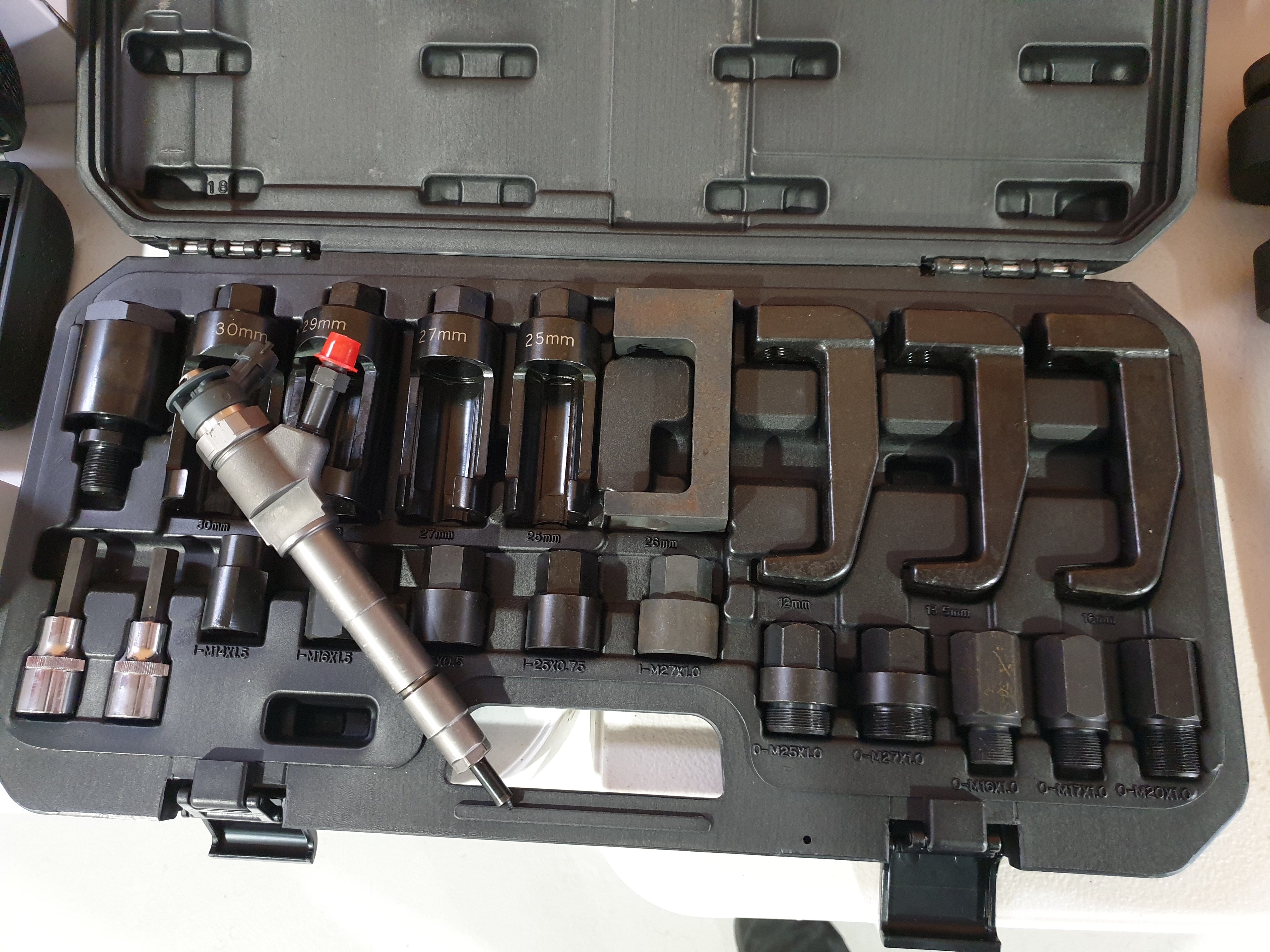

Contents: | Application | |
---|---|---|
Universal joint: M18×1.5 | ||
Special bit insert hex 10mm × Ø7.6 | 1x special-use Allen SW10 with 7.5 mm bore, 1/2 drive, to remove the fixing ring, for example, Bosch injectors at MB CDI and PSA HDI | |
Special bit insert hex 10mm × Ø 6.6 | For releasing the internal screw of the CR injectors. | |
Pull Spindle: IT M16 × 1.0 | For Denso (Toyota 2.2D) | |
Pull Spindle: IT M17 × 1.0 | For Bosch injectors, e.g., Alfa, BMW, Fiat, MB, PSA, Renault | |
Pull Spindle: IT M20 × 1.0 | For Denso | |
Pull Spindle IT M25 × 1.0 | Siemens injectors, e.g. PSA (DW10) | |
Pull Spindle IT M27 × 1.0 | Siemens injectors, e.g. PSA (DW10) | |
Pull Spindle OT M16 × 1.5 | Pull Adapter for M16 x1.5 thread, such as used in Facom tools | |
Pull Spindle OT M14 × 1.5 | Internal thread for Bosch / Delphi Injectors, e.g. MB (OM 629/642/646), PSA (DV4 / DW12), VW (CBD), BMW (M47) | |
Pull Spindle OT M25 × 0.5 | For Denso | |
Pull Spindle OT M25 × 0.75 | For Denso | |
Pull Spindle OT M27 × 1.0 | For Siemens, e.g. Citroen C5 / Jumpy / Xsara, Fiat Ducato JTD, Peugeot 206/307/406 / Boxer (2.0 / 2.2 / 2.3 HDI) Mercedes-Benz CDI (except A-Class (Sprinter / Vito) | |
Special socket (25mm) | For Siemens Injectors - 2.0 Hdi (DW Series) As found on PSA, Ford, Toyota etc | |
Special socket (27mm) | For Siemens Piezo Injectors – 2.0 Hdi Piezo (DW Series) As found on PSA etc | |
Special socket (29mm) | For Bosch type injectors – Bosch Cdi / Hdi engines | |
Special socket (30mm) | For Bosch type injectors – Bosch Renault / Nissan 1.9dCi | |

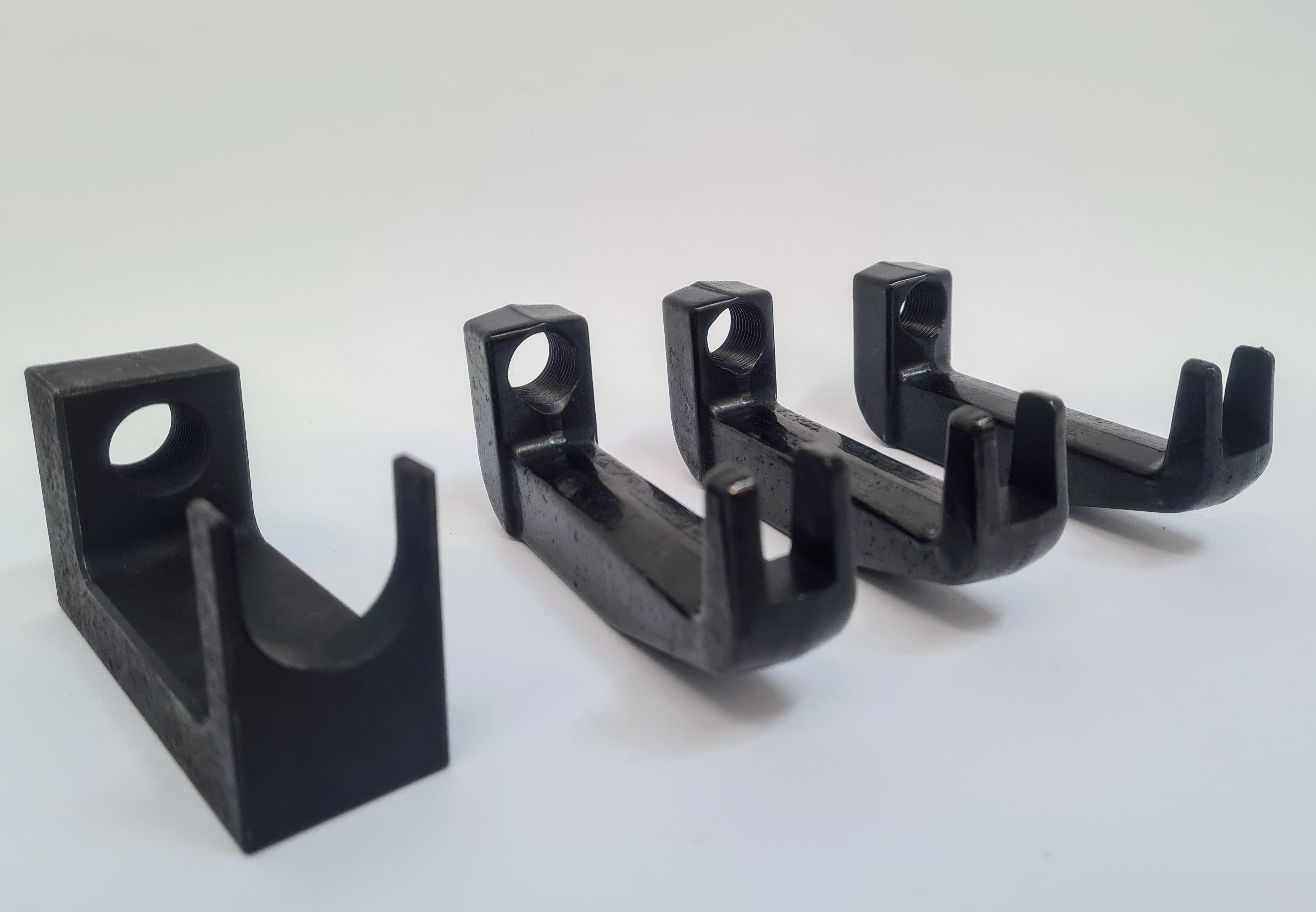

Injector gripper(12MM) | For MB CDI-engines, except Sprinter, Vito and A-class | |
Injector gripper(13.5MM) | For Opel Renault F9Q | |
Injector gripper(16MM) | For Fiat Ducato JTD, Citroen C5, Xsara, Jumpy and Jumper HDI and Peugeot 206, 307, 406, Boxer HDI (2.0, 2.2, 2.3I) | |
Injector gripper(26MM) | For Opel Z19DT / Z19DTH / Z19DTL engines, A20DTH (LBS) / A20DTR (LBY) / A20DTJ (LBX) / A20DTC (LCD) and Fiat 1.9 JTD |
Just contact us for a shipping quote on your purchases.
All products advertised are stocked in our Canberra warehouse – If you need more information, technical advice or assistance – we are here to help. We encourage customers to phone us prior to finalising your purchase
to ensure you are purchasing the appropriate tools for your purpose
