Govoni Injector Removal Without Removing Cylinder Head - Bosch And Delphi - Mercedes Sprinter Vito etc

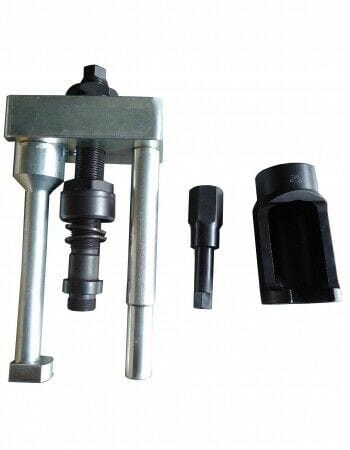

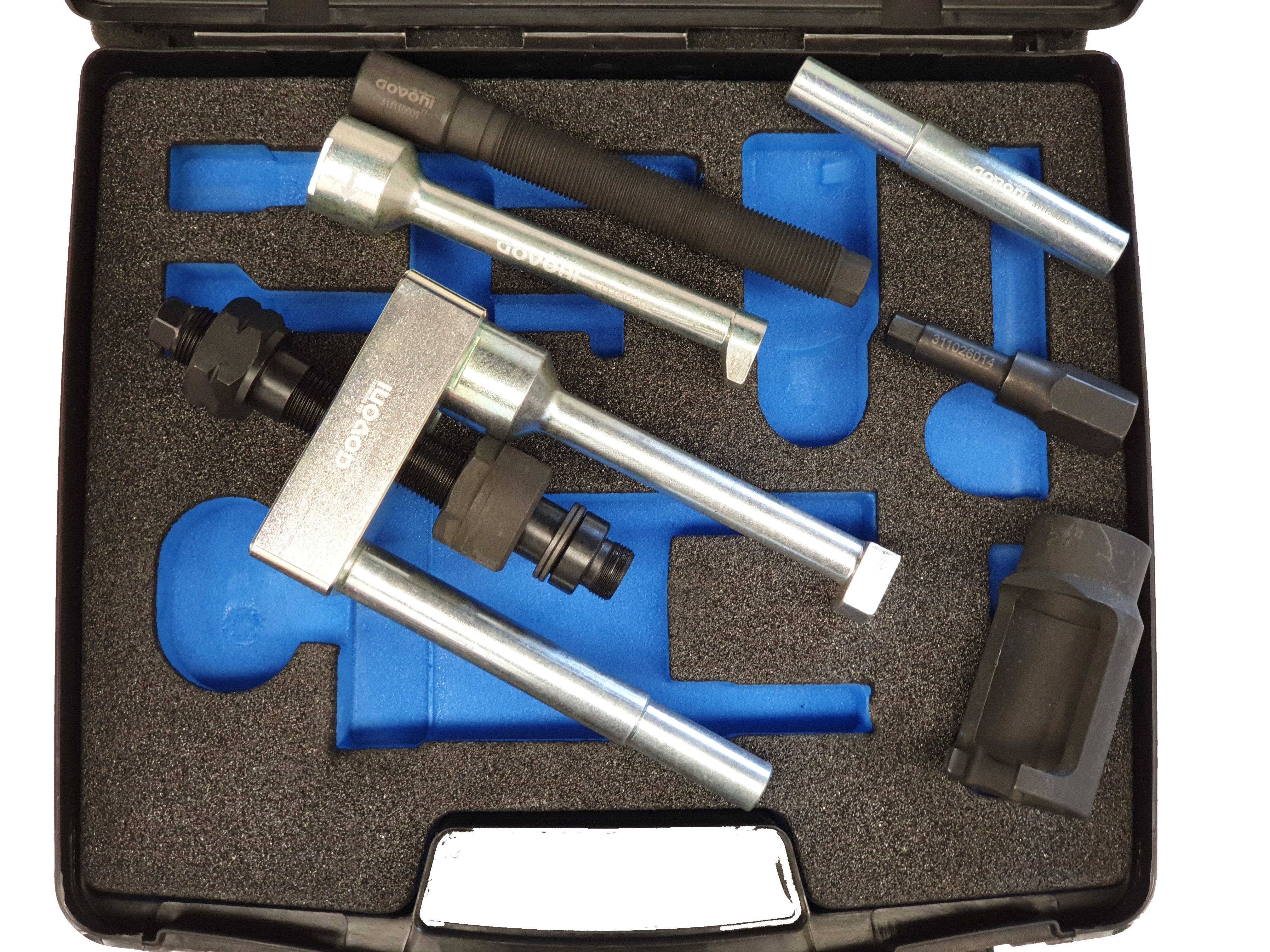

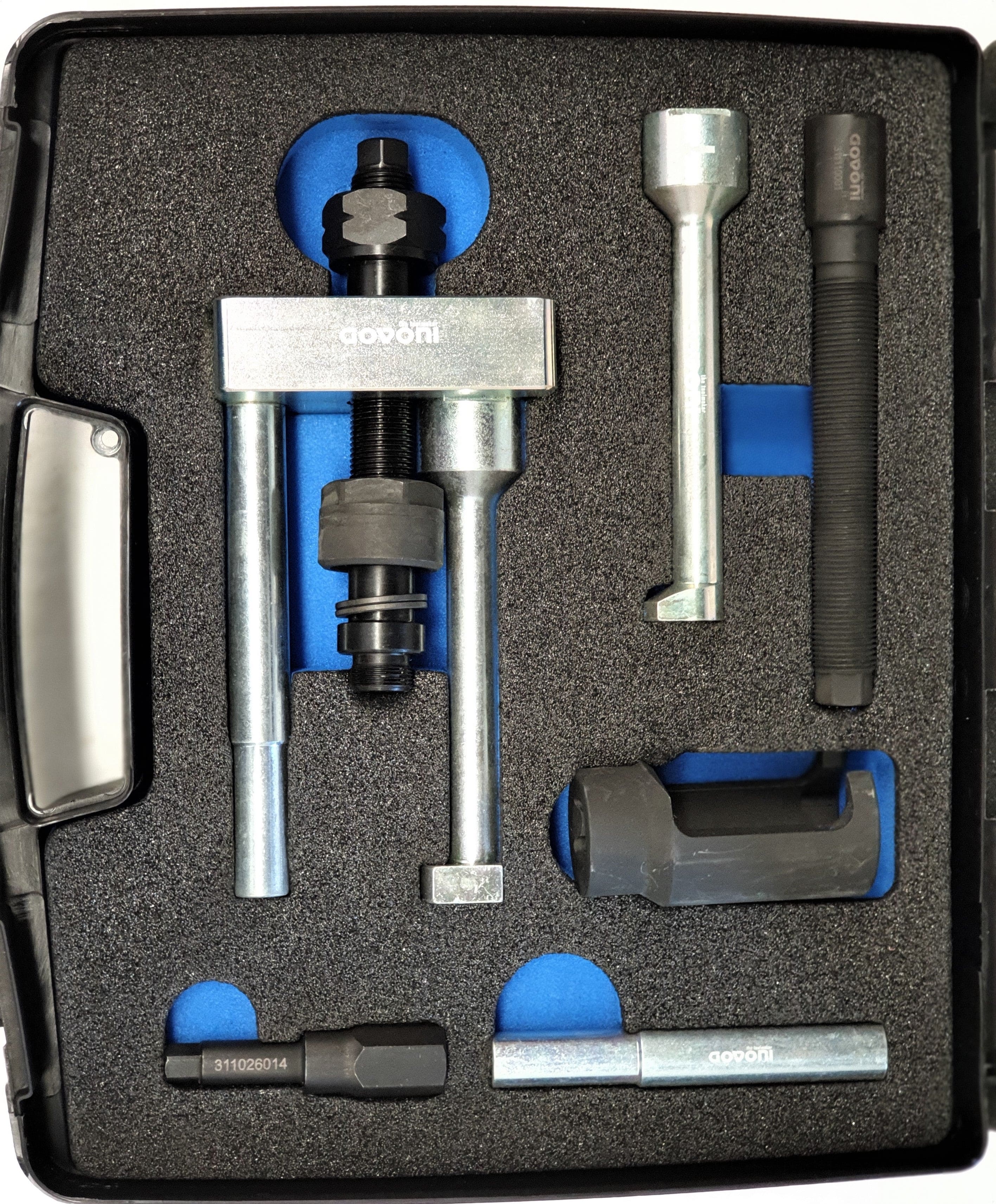

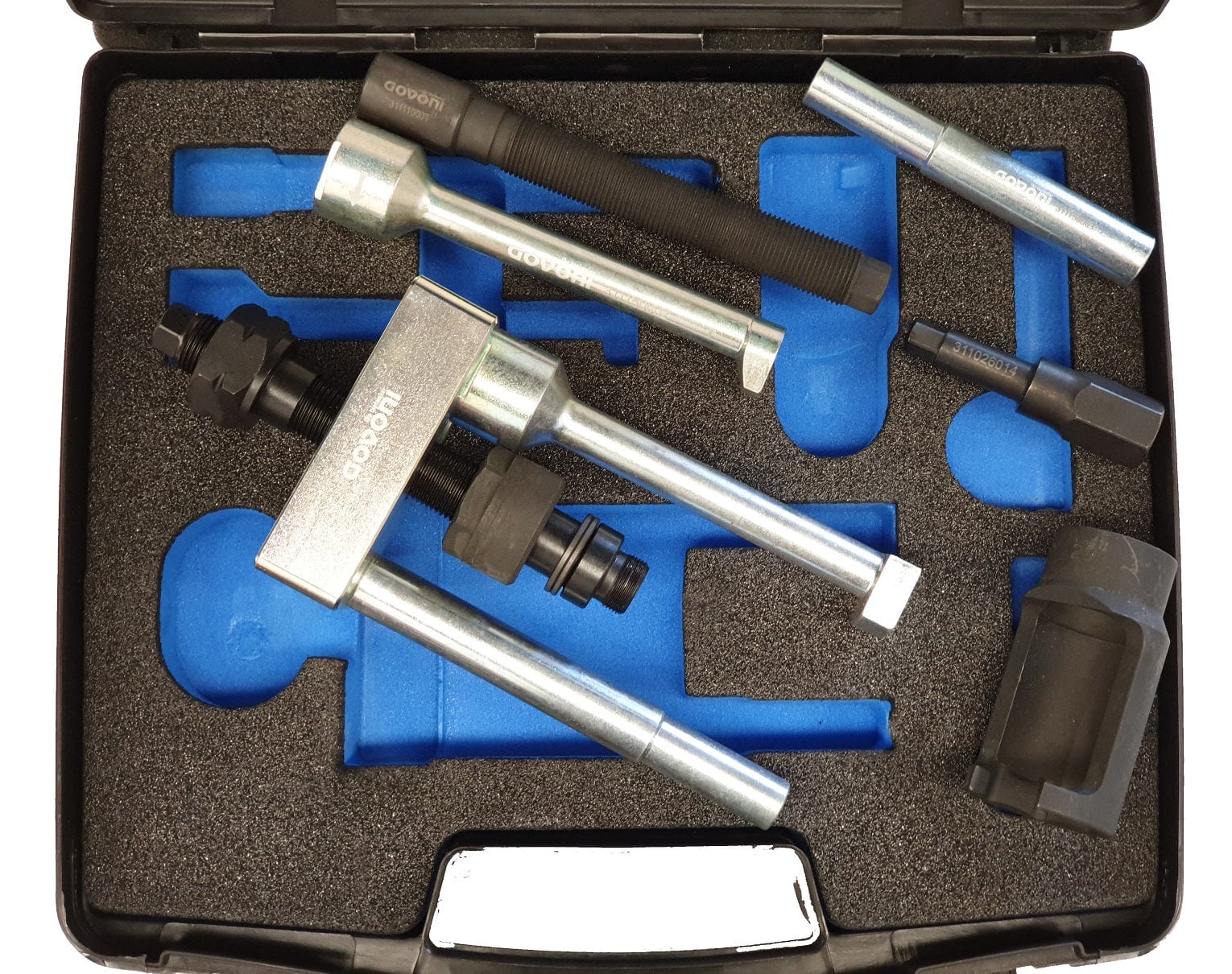

 Govoni Diesel Injector Extractor Kit
Injectors: Bosch (2.1 l, 2.2 l), Delphi (3.0)

GO425 (G311171000)

This Tool is designed specifically for Mercedes Sprinter, Vito, C and E class CLC, CLK and Viano.

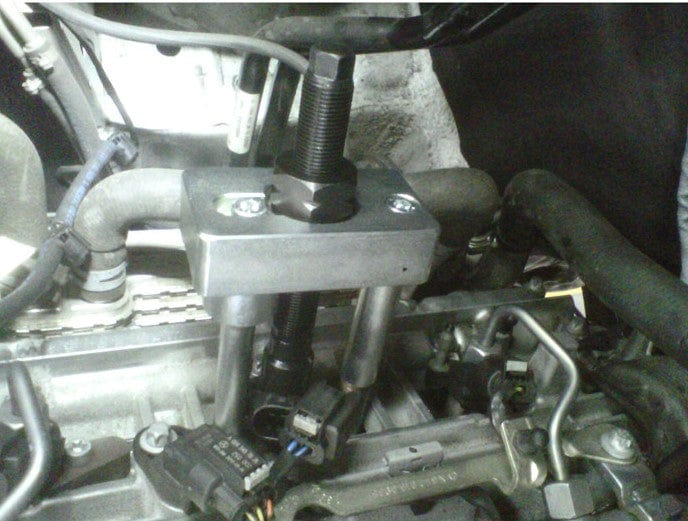

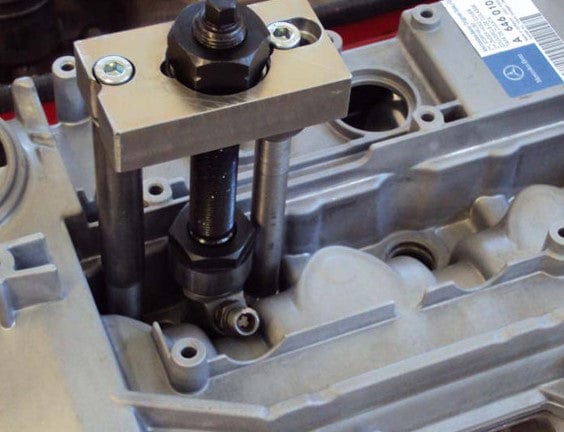

This kit allows the removal of the tightly fixed injectors nozzles and the removal of all the injectors mounted on MB 2.1 L, 2.2 L, 3.0 V6 without dismounting the cylinder head.

Injectors: Bosch (2.1 l, 2.2 l), Delphi (3.0)
Mercedes: Vito, Vario, CLK, Sprinter, Vian
Class: M, GL, C, GLK, E, CLS, S, R, G
Engine: 2.1 l, 2.2 l, 3.0 V6
Chrysler: 300 C Engine: 3.0 V6

Removal of injectors seized through heat shield washer leak that has caused resin/carbon built up around injector body.

• Allows the injector to be removed with no need to disassemble engine.
• Tool requires disassembly of injector solenoid, then adapter is screwed into injector to facilitate removal.
• Puller thread is supported on ball bearing race, allowing the force to be applied with minimal friction.

Puller bar is supported on specific areas so no damage to engine components

Note: Used when injectors are extremely seized, this tool will require the injector to be dis-assembled (magnet valve removed)
